| Useful volume max. (l) |
Total power consumption (approx.) (kW) |
Max. total flow rate dispersing (l/h) |
Construction height with open cover (mm) |
参数列表 | 图纸 | |
|---|---|---|---|---|---|---|

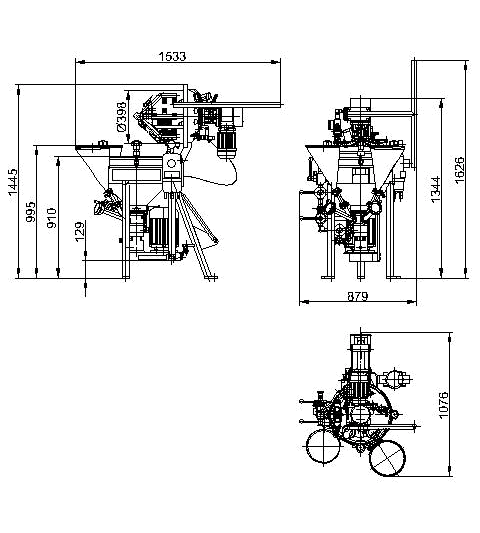

| SPP 25 | 25 | 4.5 | 2000 | 1481 |  |
 |

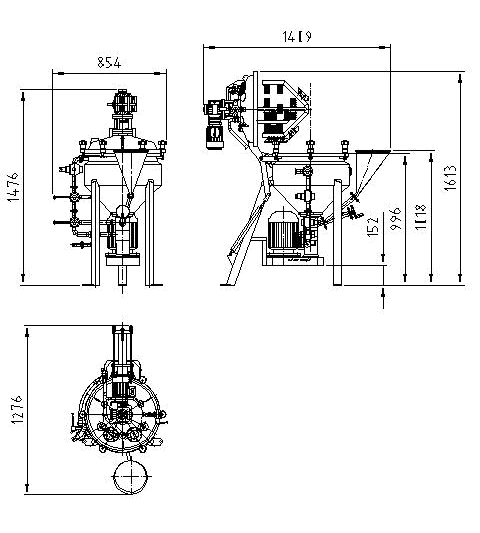

| SPP 50 | 50 | 5 | 2000 | 1694 | |
 |

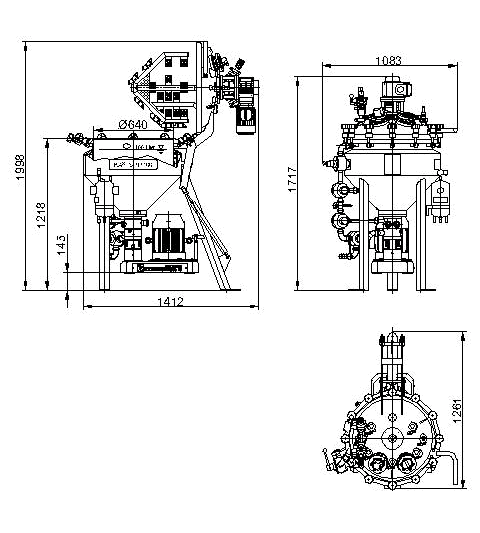

| SPP 100 | 100 | 8.5 | 5200 | 1998 | |
 |
| SPP 250 | 250 | 9 | 5200 | 2462 | |
 |

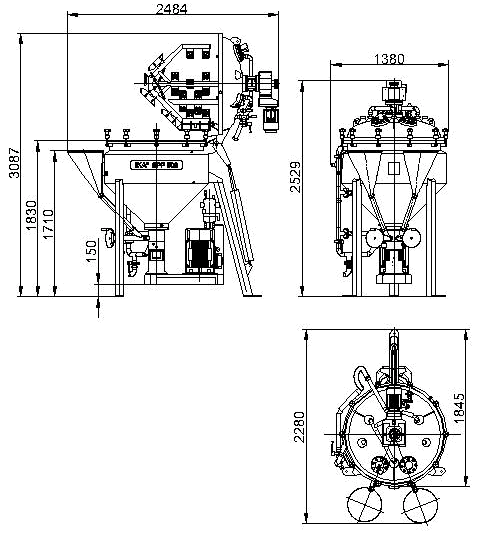

| SPP 500 | 500 | 24 | 18500 | 3167 | |
 |

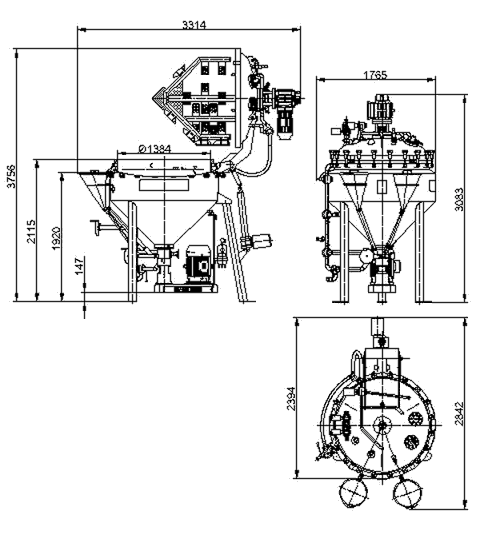

| SPP 1000 | 1000 | 25 | 18500 | 3756 | |
 |

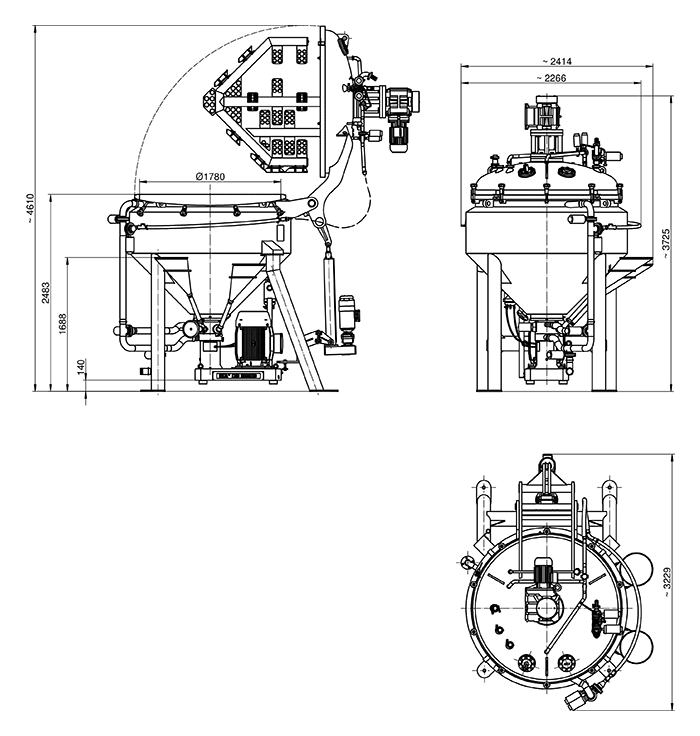

| SPP 2000 | 2000 | 49 | 20000 | 4610 | |
 |
| SPP 4000 | 4000 | 55 | 20000 | 5689 | |
